Zigbee TUYA 18mm 63A WIFI smart Bidirectional Energy Meter timer Power Monitor kWh Meter with voltage current protection
★
★
★
★
★
Trustpilot 4.8 | 439+ reviews
Description
Zigbee TUYA 63A Smart Bidirectional Energy Meter with Voltage and Current Protection
Optimize your energy management with the Zigbee TUYA 63A Smart Bidirectional Energy Meter, designed for both homes and commercial use. This smart energy meter allows you to remotely monitor and control power usage, voltage, and current via the Tuya or Smart Life app. Whether you need to track electricity consumption, set timers, or protect your appliances from power surges, this device has it all.
Key Features:

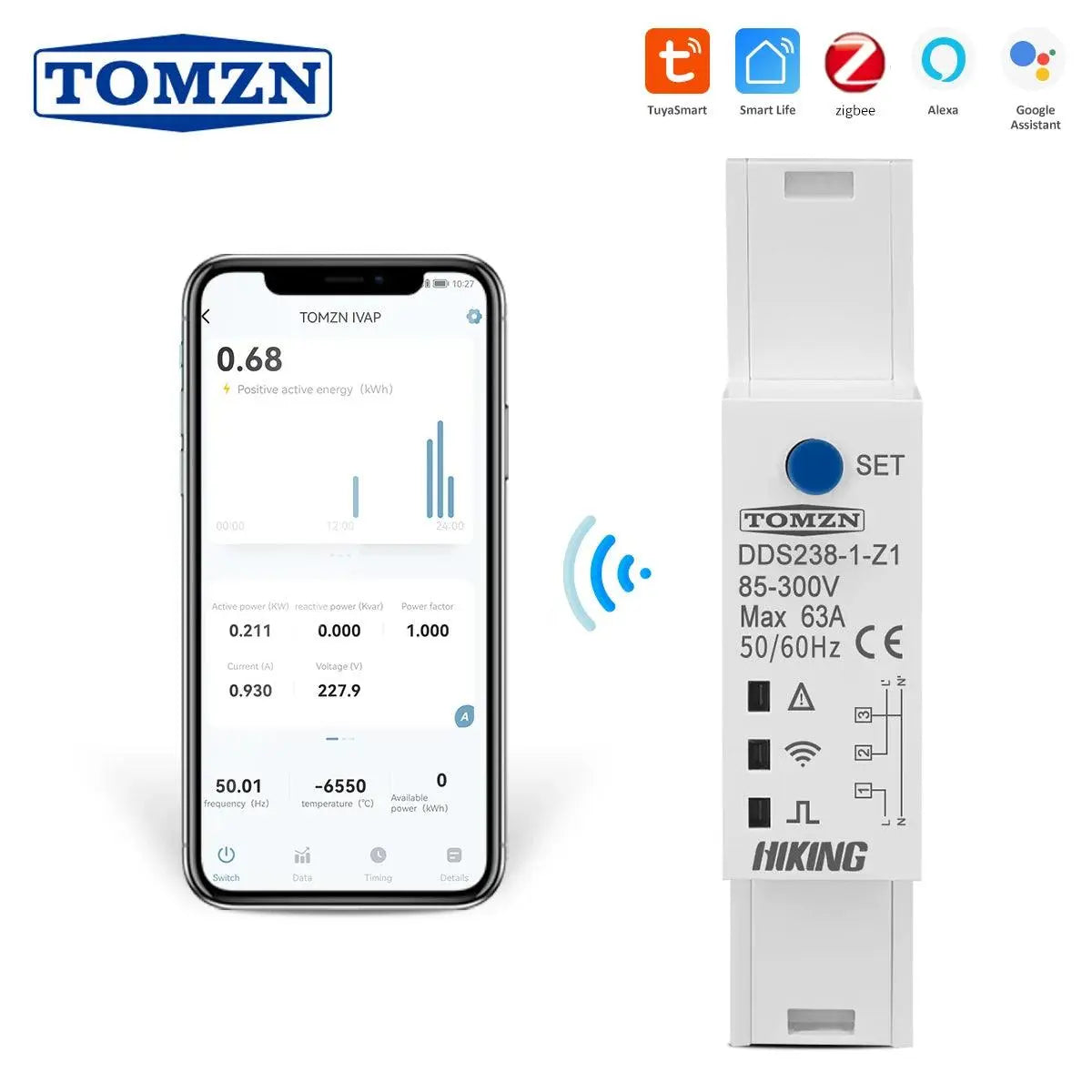

- Remote Control: Easily turn ON/OFF devices from anywhere using the Tuya or Smart Life app through Zigbee gateway support.

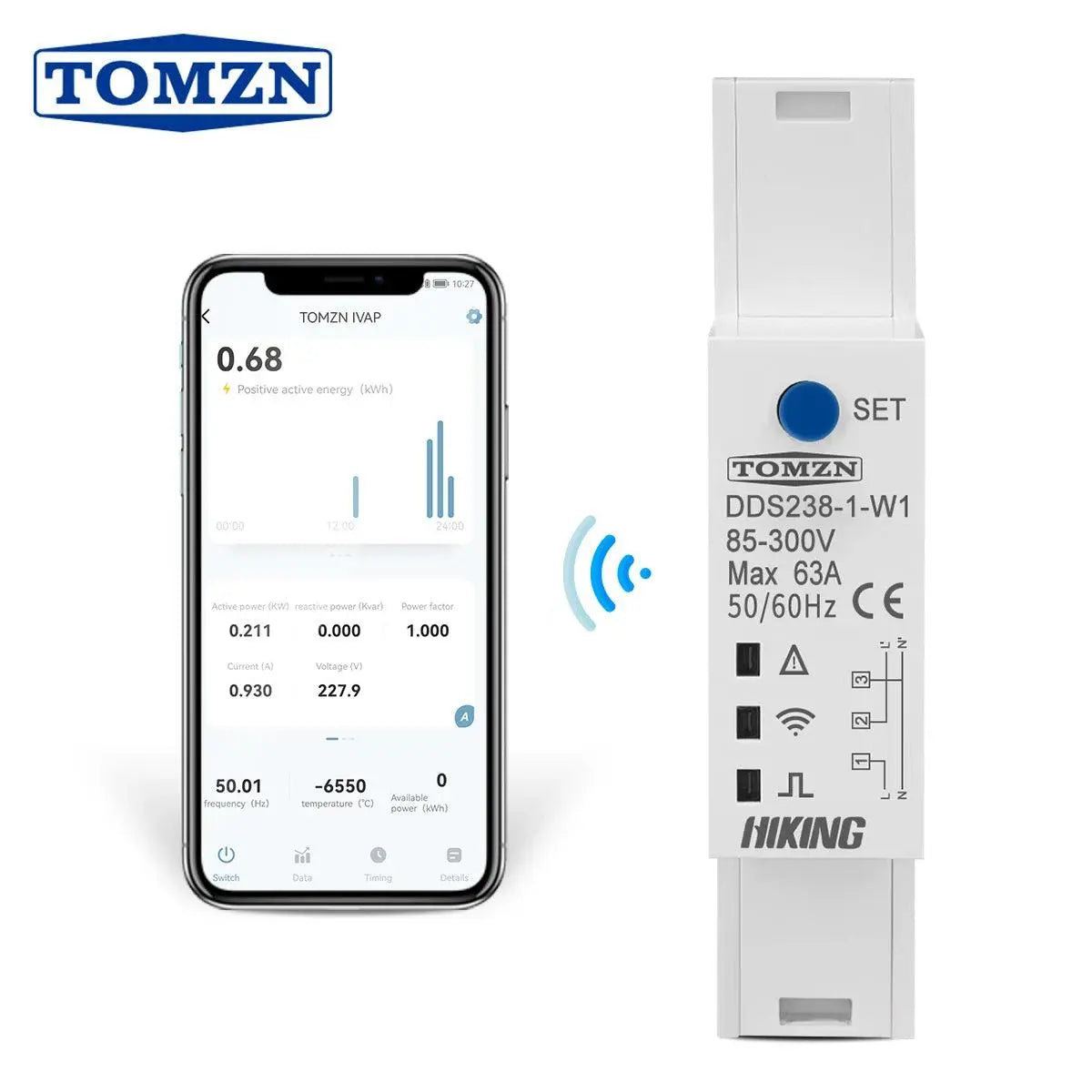

- Real-Time Power Monitoring: Track your total energy consumption (kWh), R.M.S current, voltage, and active power directly from the app.
- Timer and Delay Function: Set timers to control when power is delivered, and use the delay-off function to automatically cut power.
- LCD Display: Clear real-time data of voltage, current, active/reactive power, power factor, frequency, and total energy (kWh) shown on the LCD screen.
- Overvoltage & Overcurrent Protection: Built-in protection to safeguard your appliances, with adjustable settings for undervoltage and overvoltage thresholds.
- 35mm Din Rail Installation: Simple and quick installation process on a standard 35mm Din rail, perfect for a range of electrical setups.
- Smart Integration: Works seamlessly with other TUYA products like smart plugs, lights, and fans, allowing for full smart home integration.
- Energy Efficiency Management: View daily, monthly, and yearly energy usage reports directly on your mobile device, making energy management more efficient.
Additional Functions:
- Positive and negative phase power monitoring.
- Historical power and power curve display every 15 minutes.
- Overvoltage, overcurrent, and undervoltage protection settings.
- Remote manual control via the mobile app.
- Password-protected settings for added security.
Specifications:
- Rated Voltage: 85-300V AC 50/60Hz
- Rated Current: 63A
- Accuracy: Class 1, IEC62053-21
- Wireless Network: 2.4GHz WiFi (Not 5G supported)
- Power Measurement Range: 0-999999.9 kWh

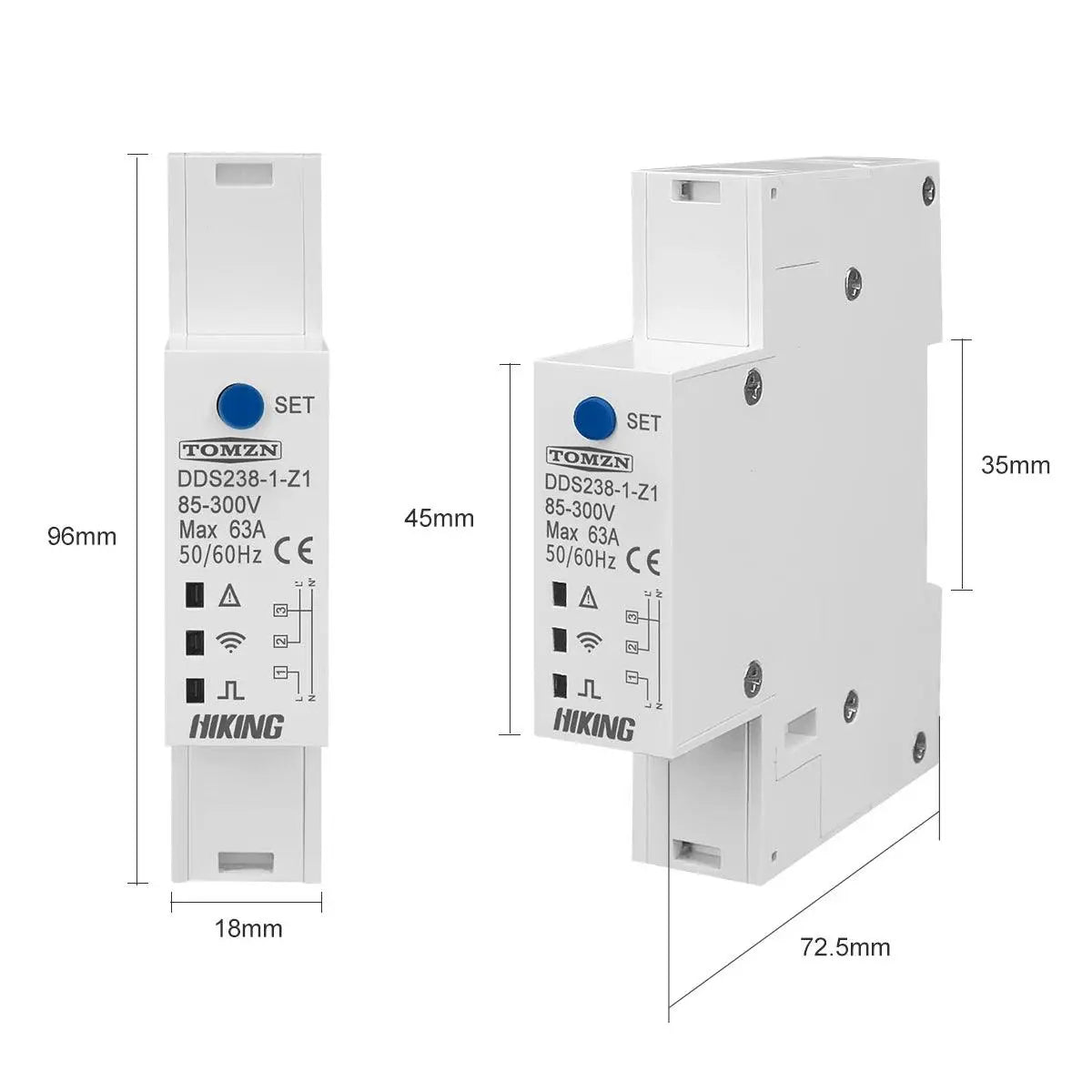

- Installation: 35mm Din rail
- Certification: CE, RoHS
Take control of your energy usage and costs while enhancing safety with this smart energy meter. Suitable for homes, rental properties, shopping malls, schools, and more.
