TUYA Zigbee Wifi Thermostat For Replacing Upgrade Air Conditioner Heating and Cooling Temperature 3 Speed Fan App Controller

TUYA Zigbee Wifi Thermostat for Replacing or Upgrading Air Conditioner Heating and Cooling Temperature 3 Speed Fan App Controller

Brand Name: SHOJZJ
Model Number: OJ-03
Certification: CE, FCC, RoHS
Wattage: <1.5W
Voltage: 95V-240V, 50/60Hz (with additional support for 1-10V, 24V)
Fan Relay Amps (Resistance): 5A
Valve Relay Amps (Resistance): 3A
Sensor: NTC3950 10K
Set Temp. Range: 5 - 35 ℃
Display Temp. Range: 5 - 99 ℃
Accuracy: ±0.5 ℃
Control Mode: Mobile App, Remote Control
App: Tuya, Smart Life
Works With: Alexa, Google Home
Protection Class: IP20
Buttons: Capacitive Touch Buttons
Supports Upgrades: Honeywell

Product Overview:

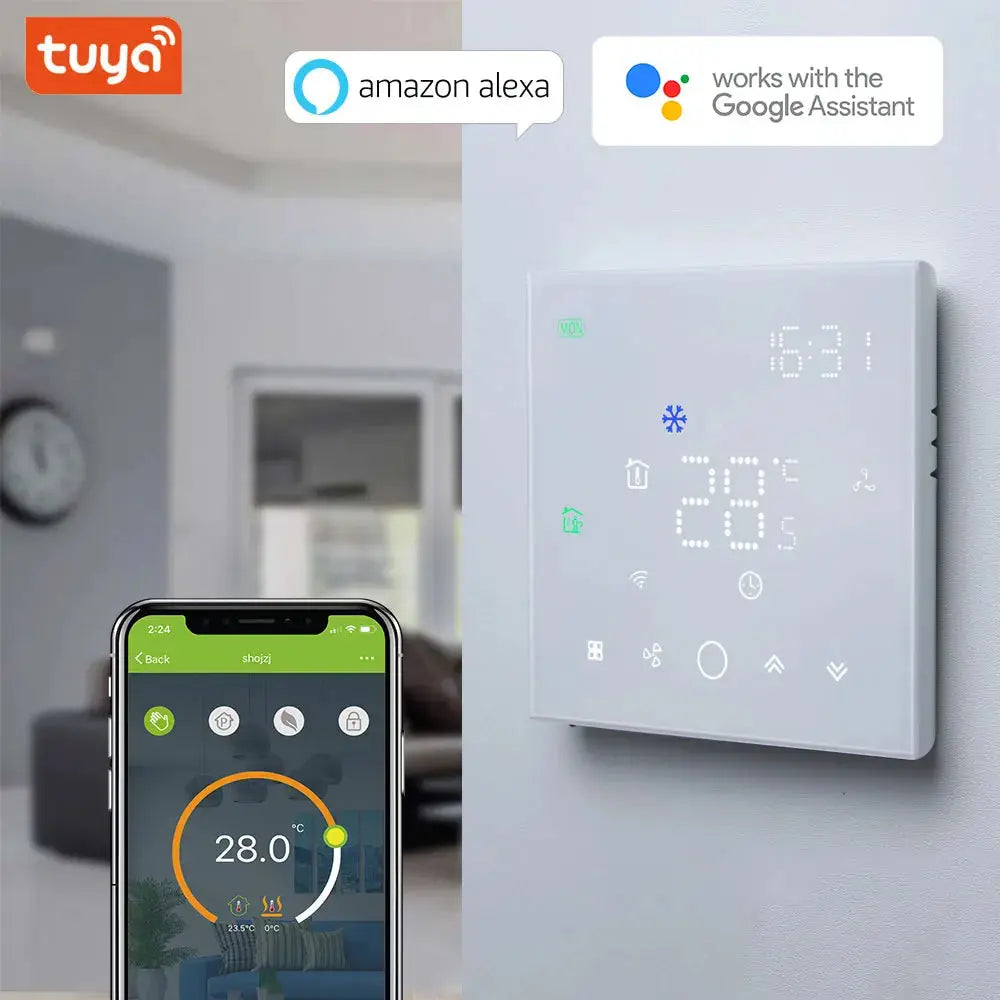

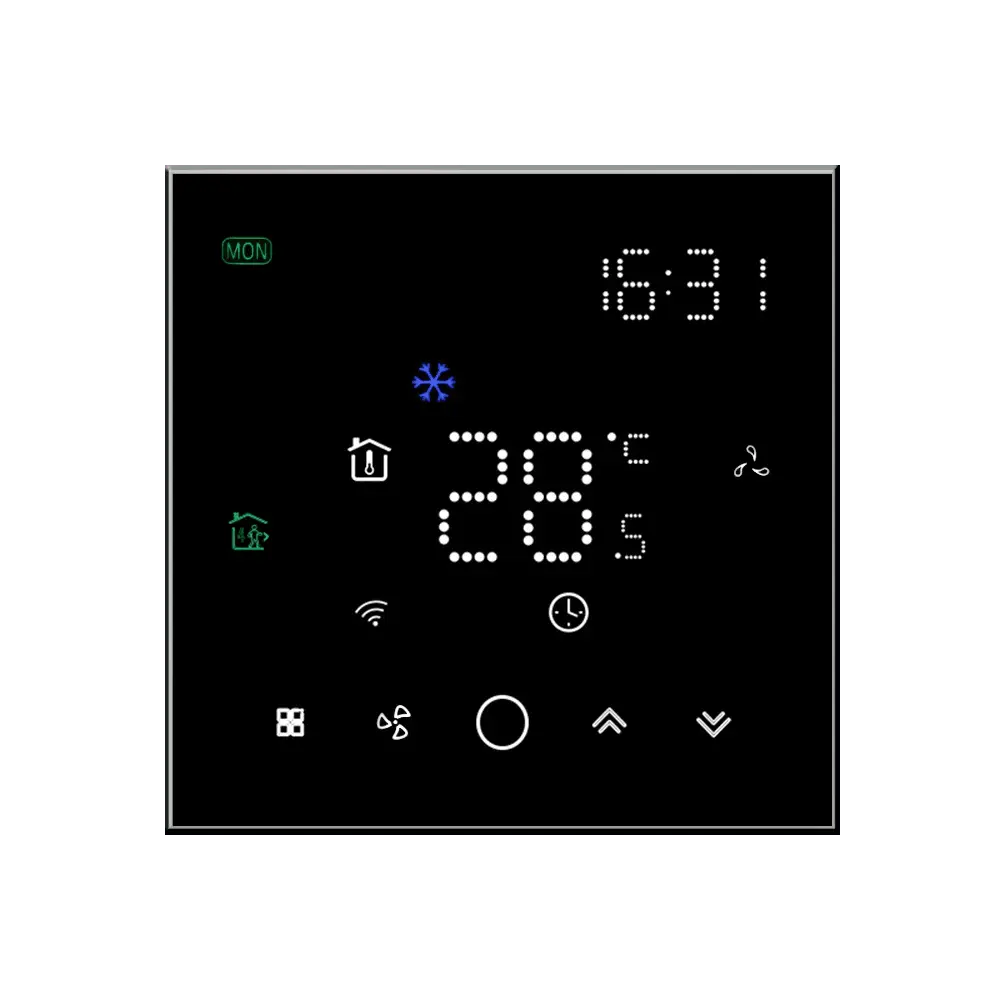

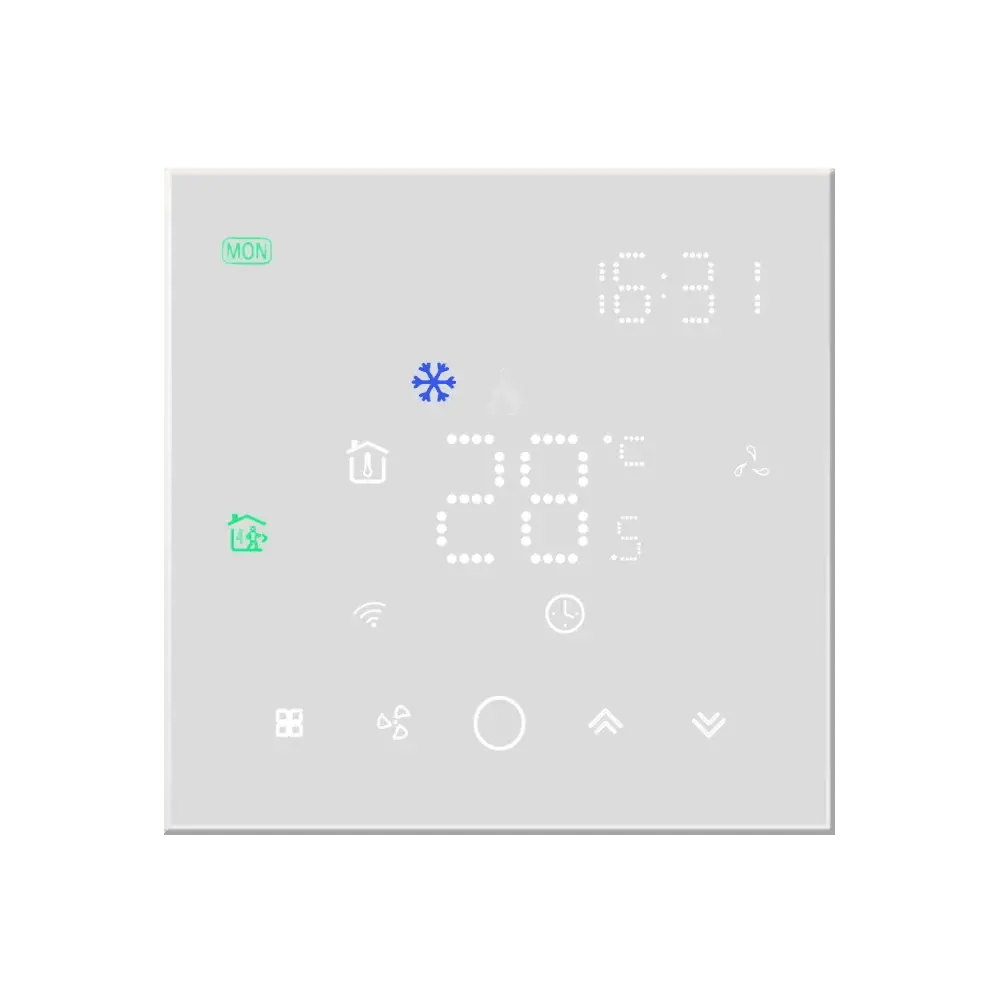

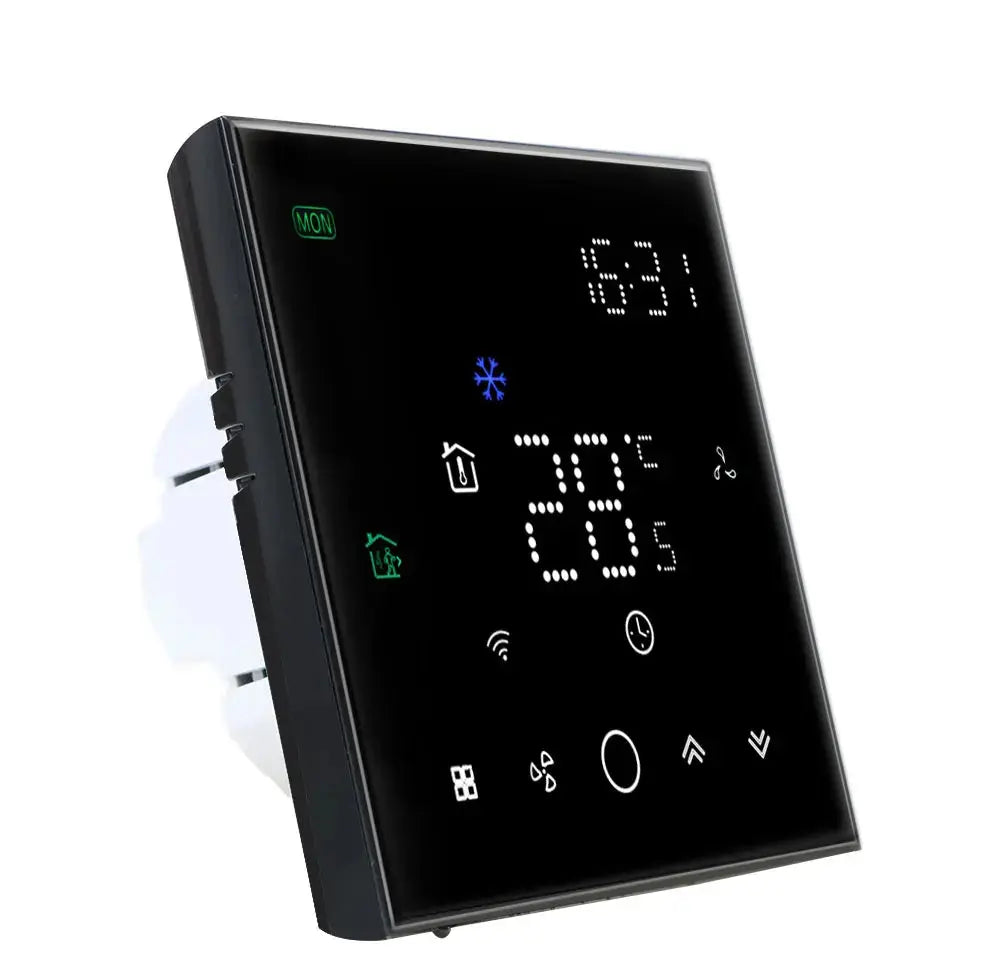

The TUYA Zigbee Wifi Thermostat is a smart home solution designed for controlling air conditioning, heating, and fan coil units. It offers both manual and remote temperature control via the Tuya or Smart Life apps, allowing users to adjust room temperatures for optimal comfort and energy efficiency. This thermostat supports integration with Amazon Echo and Google Home, making it a seamless addition to smart homes.

Key Features:

1. WiFi and ZigBee Connectivity
   The thermostat can be controlled remotely via the Tuya Smart Life App over WiFi or ZigBee, enabling users to adjust settings from anywhere.

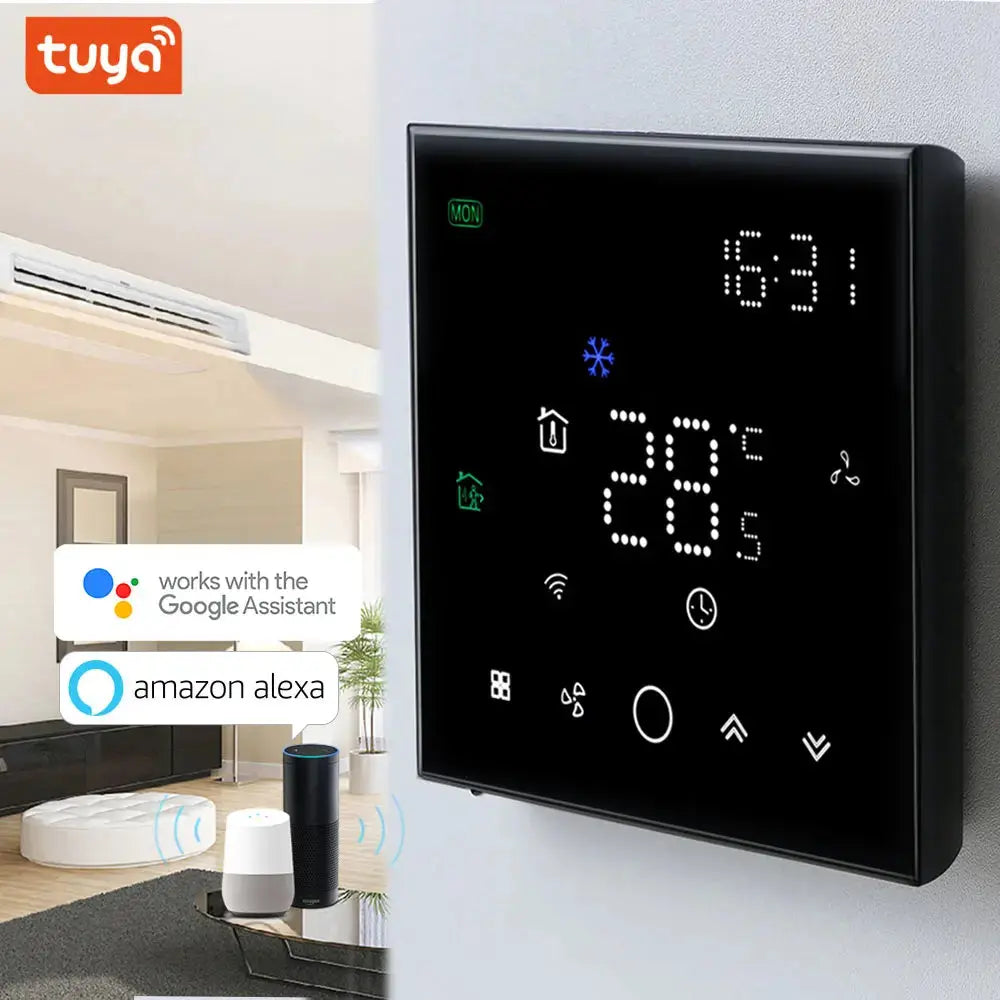

2. Compatibility with Amazon Echo and Google Home
   Easily integrate the thermostat with Alexa and Google Home for voice control, creating a convenient smart home environment.

3. Energy Efficiency

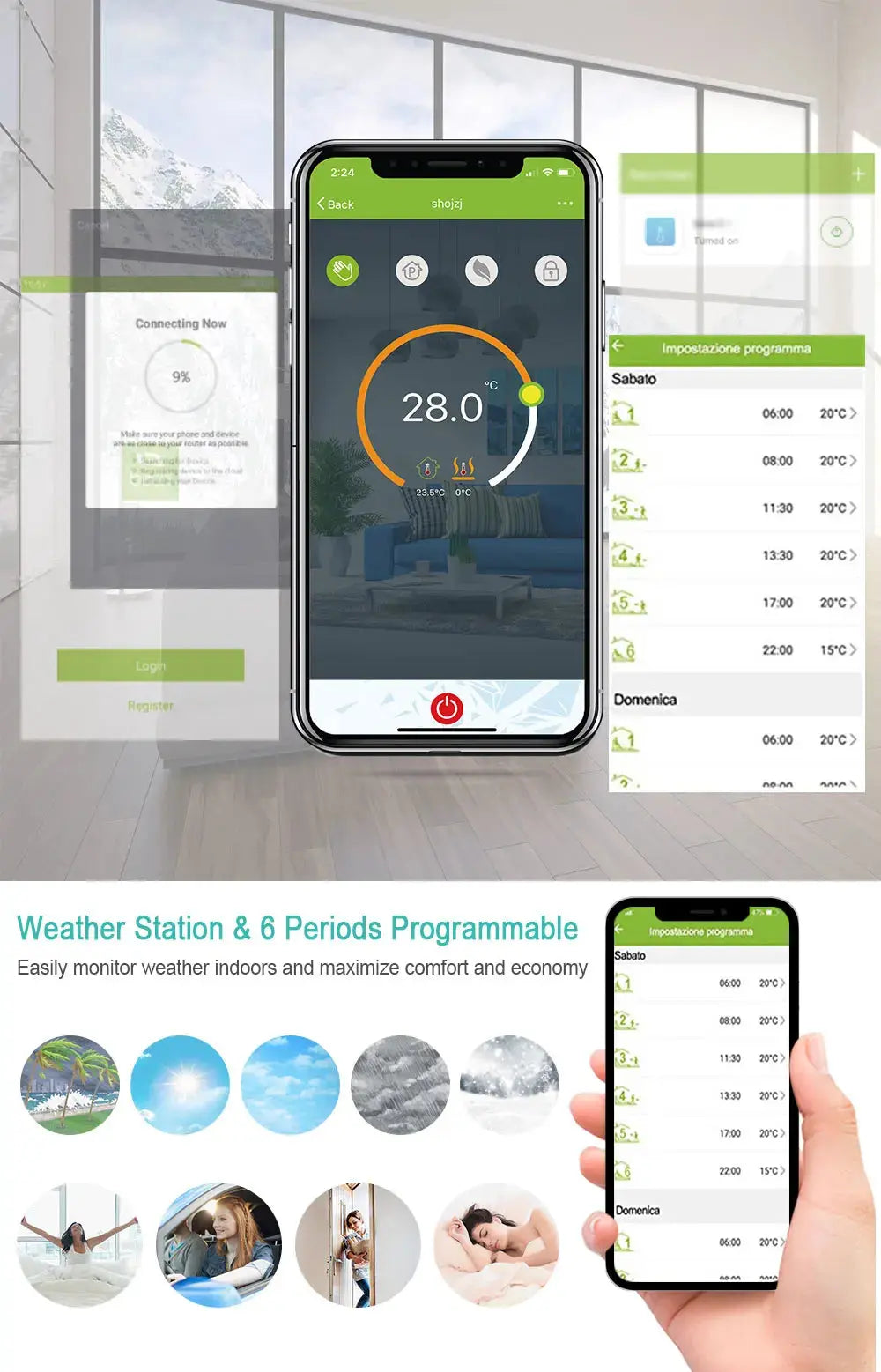

   With its 5+2 six-period programmable feature, you can set temperature schedules that optimize comfort and reduce energy consumption.

4. Child Lock
   Prevent accidental adjustments by locking the thermostat, making it a child-safe option for families.

5. Temperature Precision
   The thermostat ensures temperature accuracy within ±0.5°C, keeping the environment consistently comfortable.

6. Device Sharing
   Share device control with family members or roommates via the app, allowing multiple users to manage the thermostat.

7. Supports Modbus and BACnet Communication
   For enhanced compatibility with industrial and commercial systems, the thermostat includes Modbus RTU and BACnet communication protocols.

8. Smart Scene Support
   Create custom scenes and automate your home environment based on your preferences, such as setting specific temperatures during different times of the day.

Technical Specifications:

• Power Supply: 95-240V AC, 50/60Hz
• Fan Relay Amps (Resistance): 5A
• Valve Relay Amps (Resistance): 3A
• Temperature Accuracy: ±0.5°C
• Control Modes: Mobile app (Tuya/Smart Life), remote control
• Integration: Supports Amazon Echo, Google Home
• Set Temp. Range: 5-35°C
• Display Temp. Range: 5-99°C
• Protection Class: IP20

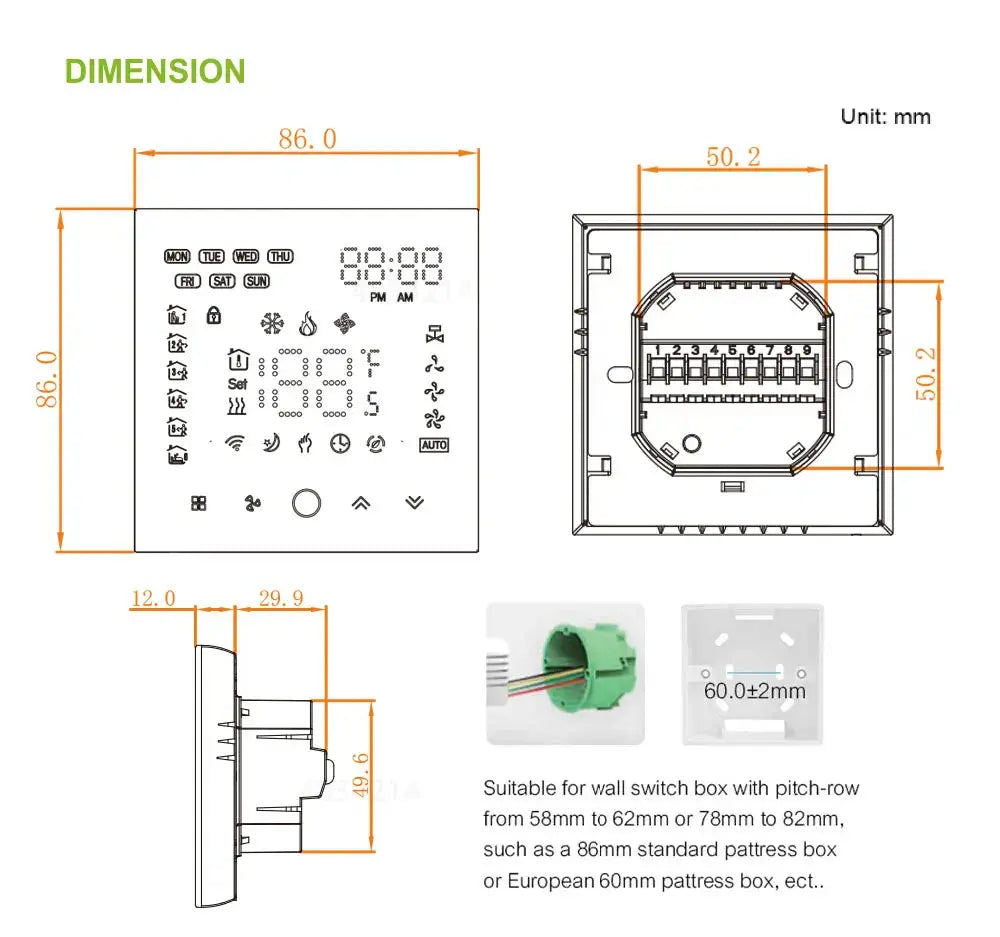

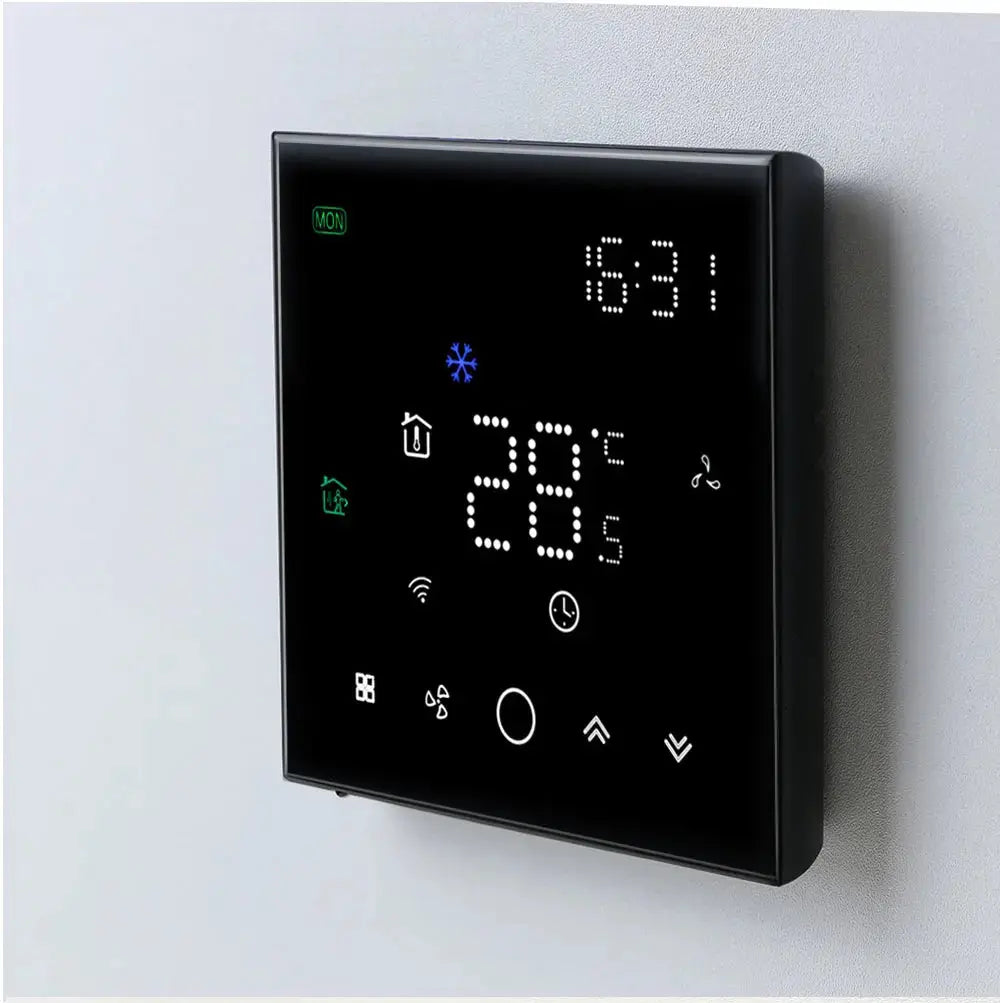

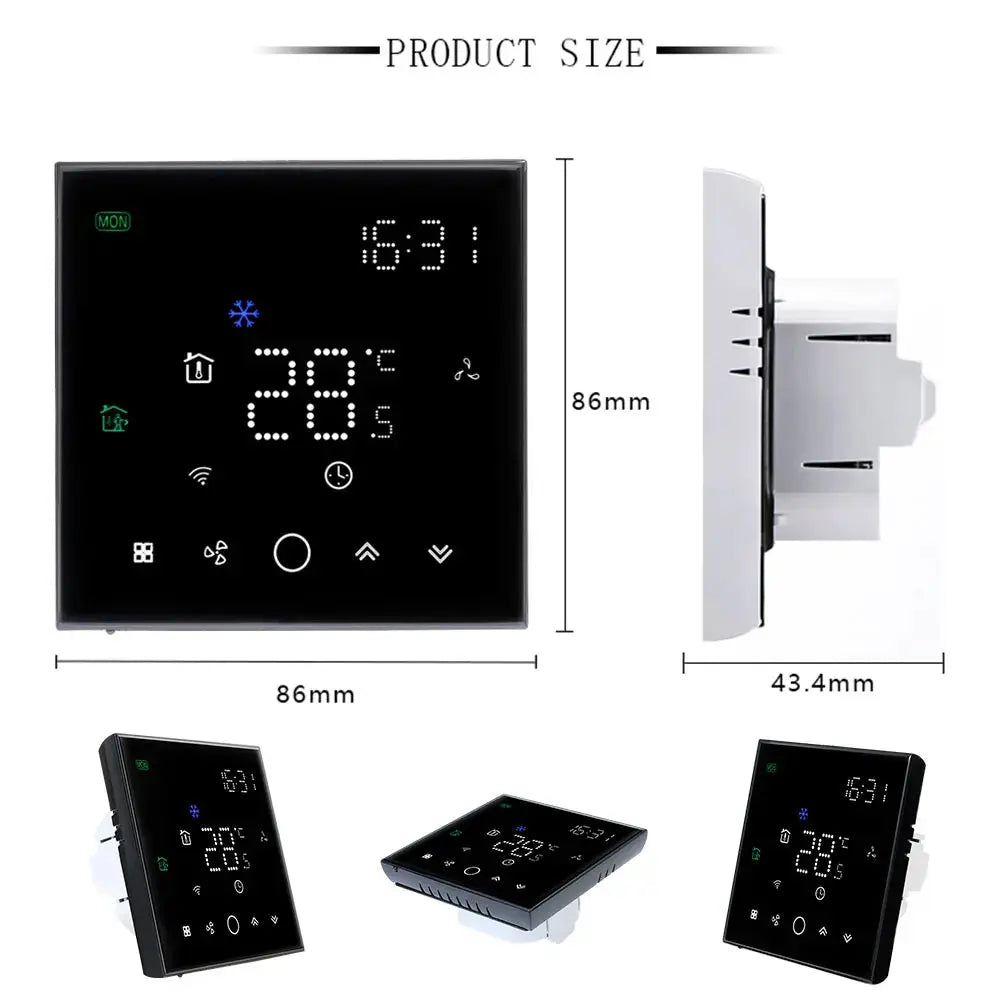

• Installation: Fits standard 86mm or European 60mm pattress box

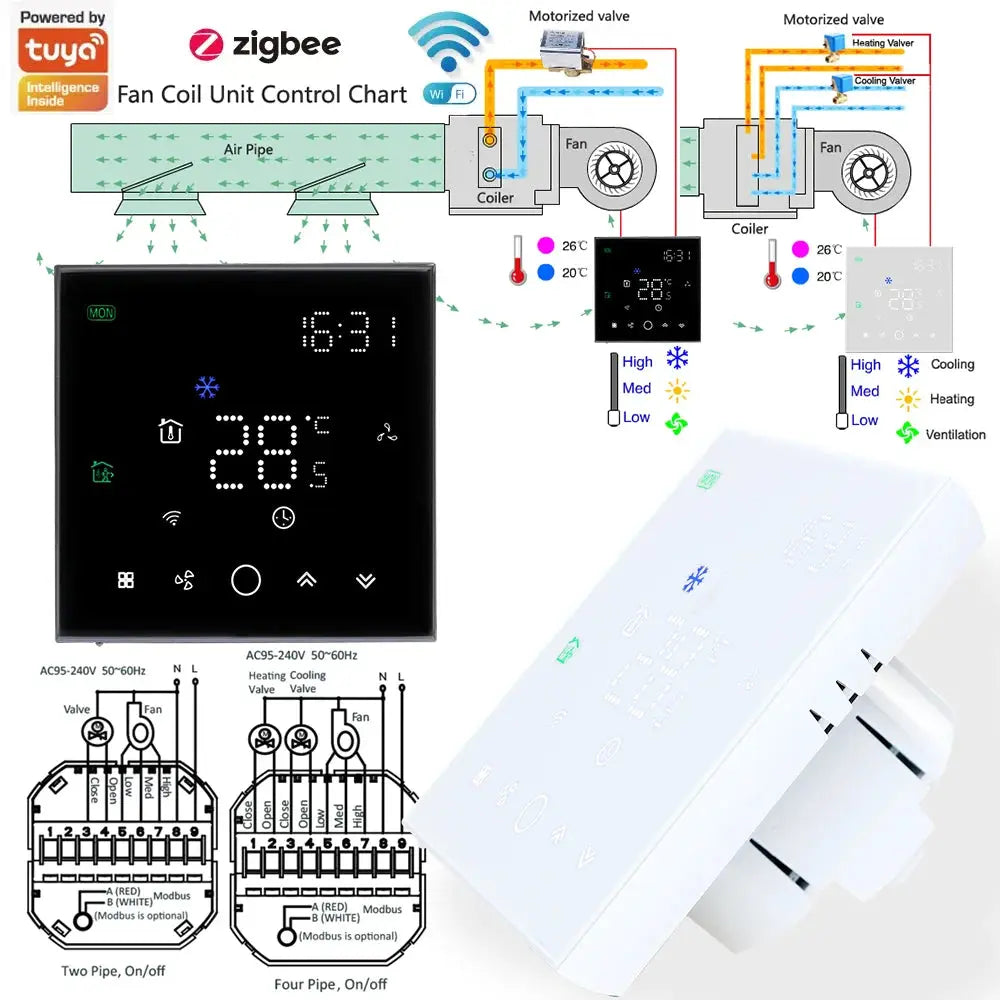

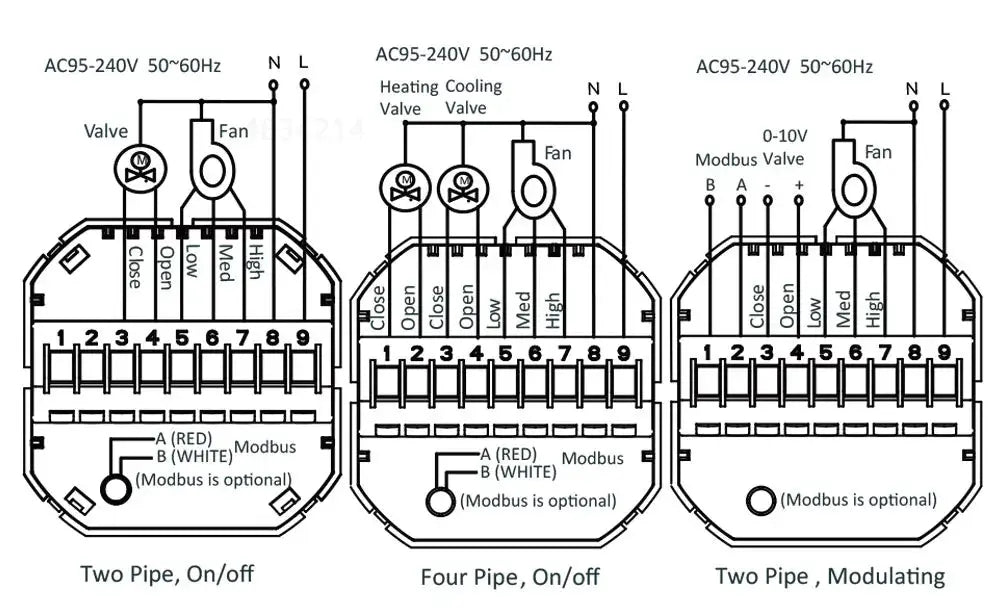

• Wiring: Connect power supply and load as per installation instructions.

Installation Guide:

1. Turn Off Power: Before installation, turn off the electricity for safety.
2. Remove Mounting Plate: Rotate and remove the LCD part to access the mounting plate.
3. Connect Wiring: Connect the power supply and load to the appropriate terminals.
4. Fix Mounting Plate: Secure the mounting plate to the wall using screws.
5. Reattach Thermostat: Attach the LCD part back onto the mounting plate.
6. Power On: After installation, turn on the power and configure the thermostat using the Tuya or Smart Life app.

Why Choose This Thermostat?

The TUYA Zigbee Wifi Thermostat is perfect for those looking to upgrade their air conditioning or heating system with smart features. Whether you want to control the temperature via mobile apps, automate heating and cooling schedules, or integrate voice control with Alexa or Google, this thermostat offers a versatile and user-friendly solution.
