Din Rail WIFI Circuit Breaker Smart 1 2 3 4 Phase, Smart Home Switch,63A MCB,Overload Short Circuit Protection,Alexa Remote

Din Rail Wi-Fi Circuit Breaker. Smart 1/2/3/4 Phase - 63A MCB with Overload and Short Circuit Protection

Upgrade your home or business's electrical safety with the Tuya Smart Din Rail Wi-Fi Circuit Breaker. With support for Amazon Alexa and Google Home, this intelligent circuit breaker allows you to remotely control and monitor your electrical systems through the Tuya Smart or Smart Life APP, providing real-time overload and short-circuit protection. Whether you need to manage household appliances, water heaters, or factory equipment, this smart breaker is designed to enhance control and safety.

Key Features:

• Multiple Phase Options: Available in 1P, 2P (AC 220V) and 3P, 4P (AC 380-440V) for various applications.
• Smart Control: Use the Tuya Smart or Smart Life App for remote control, timing schedules, and voice commands via Amazon Alexa or Google Home.
• Safety Protection: Provides overload, short-circuit, over-voltage, and surge protection to keep your electrical circuits secure.
• Real-Time Monitoring: Track energy consumption and control devices remotely from your smartphone, anywhere and anytime.

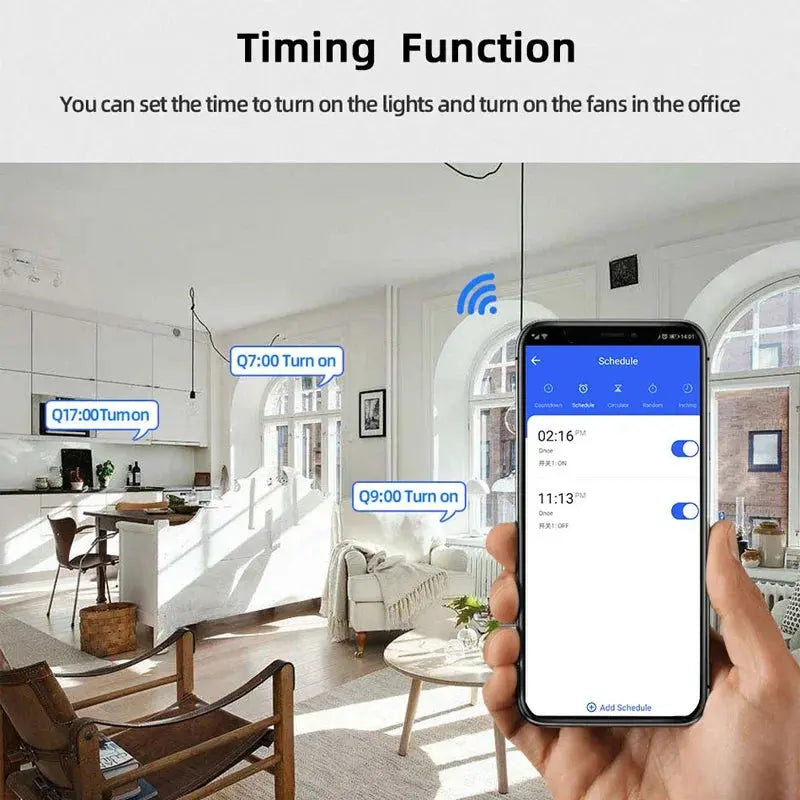

• Timer & Scheduling: Automate on/off cycles for optimal energy savings and equipment protection.

Technical Specifications:

• Brand Name: AllbeAI
• Product Type: Wi-Fi Circuit Breaker
• Voltage (1P, 2P): AC 220V, 50/60Hz
• Voltage (3P, 4P): AC 380-440V, 50/60Hz
• Rated Current: 63A (max)
• Voice Control: Yes (Supports Amazon Alexa, Google Home)
• App Control: Yes (Tuya Smart or Smart Life App)
• Short Circuit Protection: Yes
• Overload Protection: Yes
• Surge Protection: Yes
• Communication Method: Wi-Fi
• Certifications: CE, FCC, RoHS

Application:

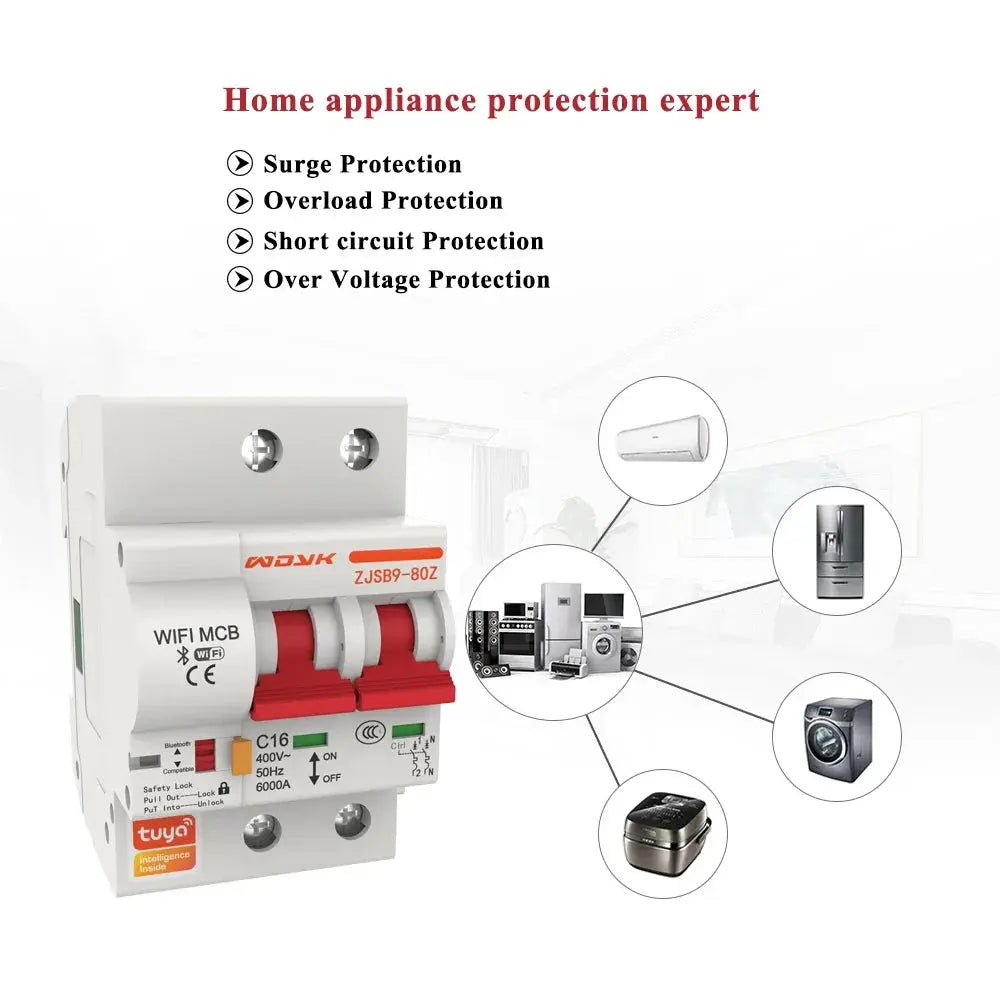

The ZJSB9-80Z Wi-Fi Intelligent Recloser Circuit Breaker is ideal for homes, dormitories, farmlands, factories, and other installations. It can be used to control and protect water pumps, heaters, underfloor heating equipment, and other high-load devices.

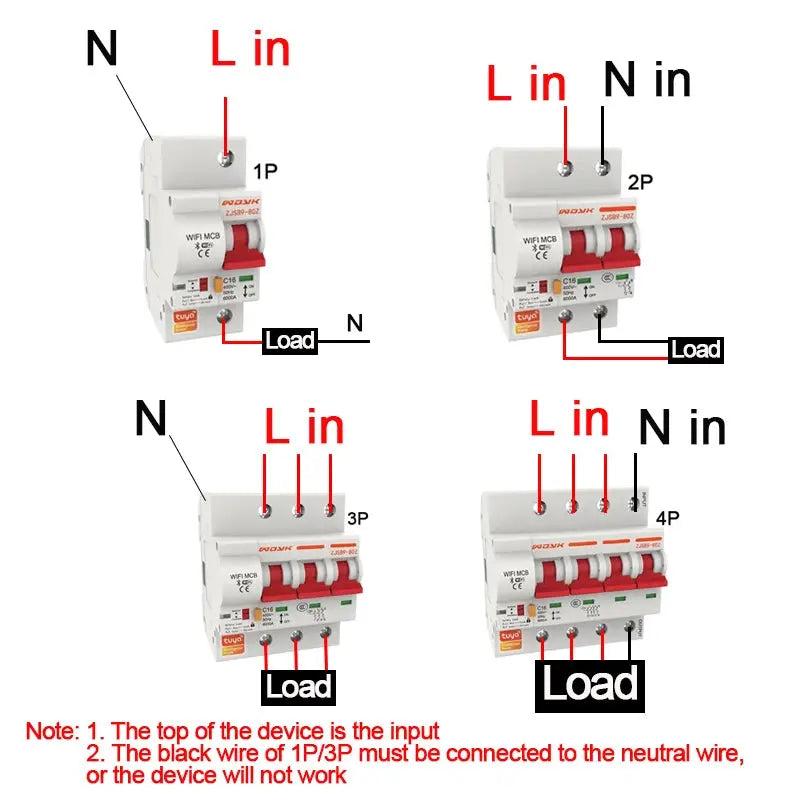

Installation Instructions:

• Input and Output Ports: Ensure that the top port is used for input, and the bottom port is used for output. Reversing these connections can prevent the breaker from functioning correctly.
• Neutral Wire Requirement: For 1P/3P, connect the black wire to the neutral line, as the device won't work without this connection.
• Positioning: If the distribution box has input lines at the bottom and output lines at the top, you may need to install the breaker upside down to ensure proper functionality.

Why Choose This Smart Circuit Breaker?

This Tuya Wi-Fi Circuit Breaker is the ideal choice for users who want enhanced safety, convenience, and automation in their electrical systems. With its advanced remote control capabilities and robust protection functions, it's perfect for managing and monitoring critical appliances and systems from anywhere.
