2P 63A TUYA APP WiFi Smart Circuit Breaker & Energy Meter

Take complete control of your home's electrical system with the 2P 63A TUYA Smart Circuit Breaker. This intelligent breaker integrates with the TUYA APP to provide real-time monitoring of voltage, current, and energy consumption. It also offers advanced safety features such as over/under voltage protection, leakage current detection, and automatic reclosing in case of faults.

Key Features:

2P 63A TUYA APP WiFi Smart Circuit Breaker & Energy Meter

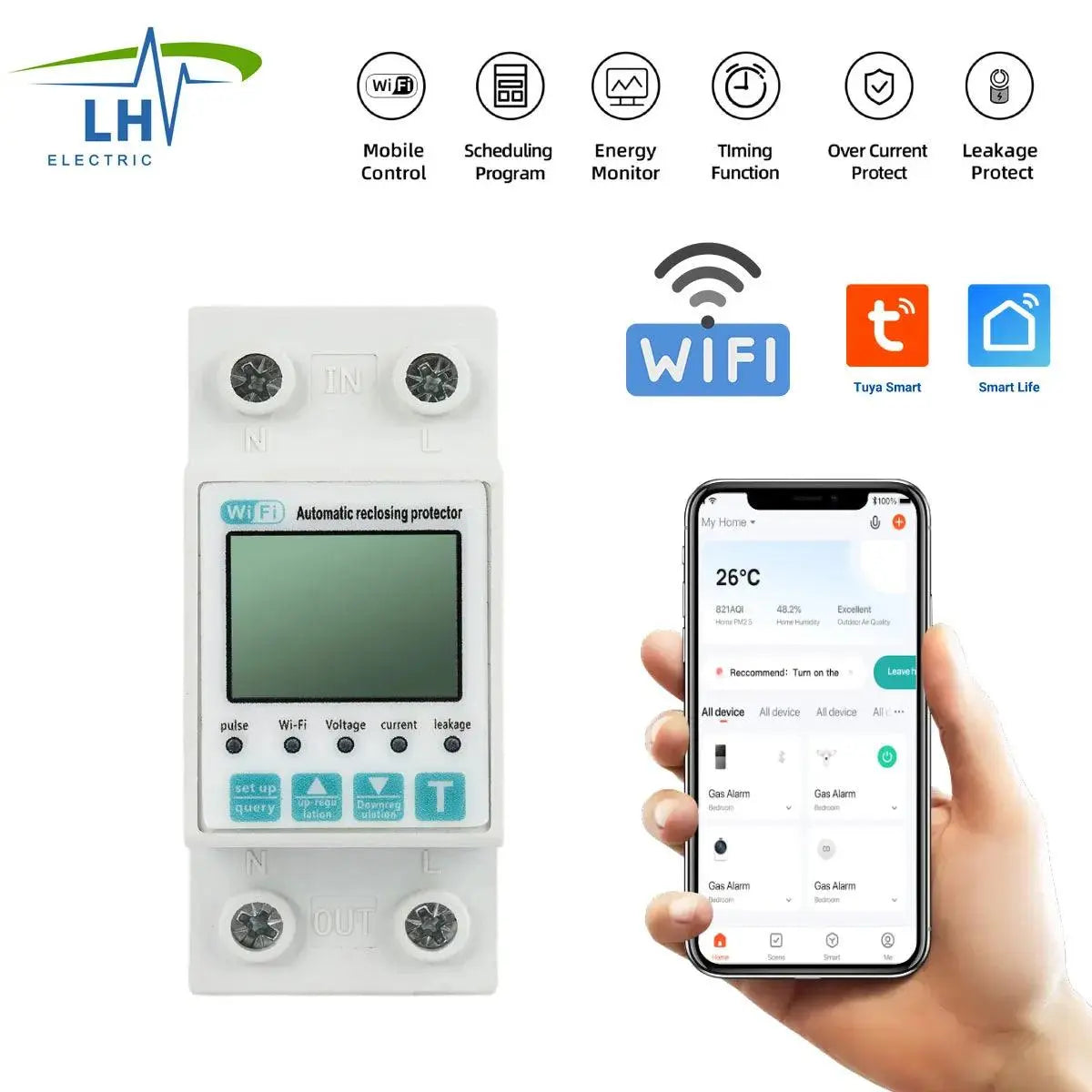

• Remote Control: Turn the circuit on/off anytime, anywhere via the TUYA APP on your phone.
• Real-Time Monitoring: Review current, voltage, leakage current, and total kWh usage directly from your smartphone.
• Customizable Protection: Set over/under voltage, overcurrent, and leakage current thresholds either in the app or directly on the device.
• Leakage Protection: Adjustable leakage protection (10-99mA, default 50mA), which can be turned off if not needed.
• Reclosing Feature: Automatically reconnects after a fault, with adjustable delay time (10s-99s).
• Multiple Timing Modes: Choose from timing mode, countdown mode, or cycle timing for energy management.
• Over-Temperature Protection: Adjustable temperature protection from 10°C to 85°C (set via the app).

Technical Specifications:

• Model Number: LY-S63A
• Rated Voltage: 220V
• Max Operating Current: 63A
• Undervoltage Protection: Adjustable from 80V to 210V (default: 175V)
• Overvoltage Protection: Adjustable from 120V to 300V (default: 275V)
• Leakage Current Protection: 10-99mA (default: 50mA)
• Reconnect Time: 10-99 seconds (default: 30s)
• Rated Supply Voltage: AC230V
• Operation Voltage Range: AC80V-400V (single phase)
• Operating Temperature: -30°C to 70°C

Ideal for home use, this smart circuit breaker ensures both convenience and safety with remote control capabilities and advanced electrical protections. Perfect for managing energy in modern homes and offices.
